LIFTING EQUIPMENT

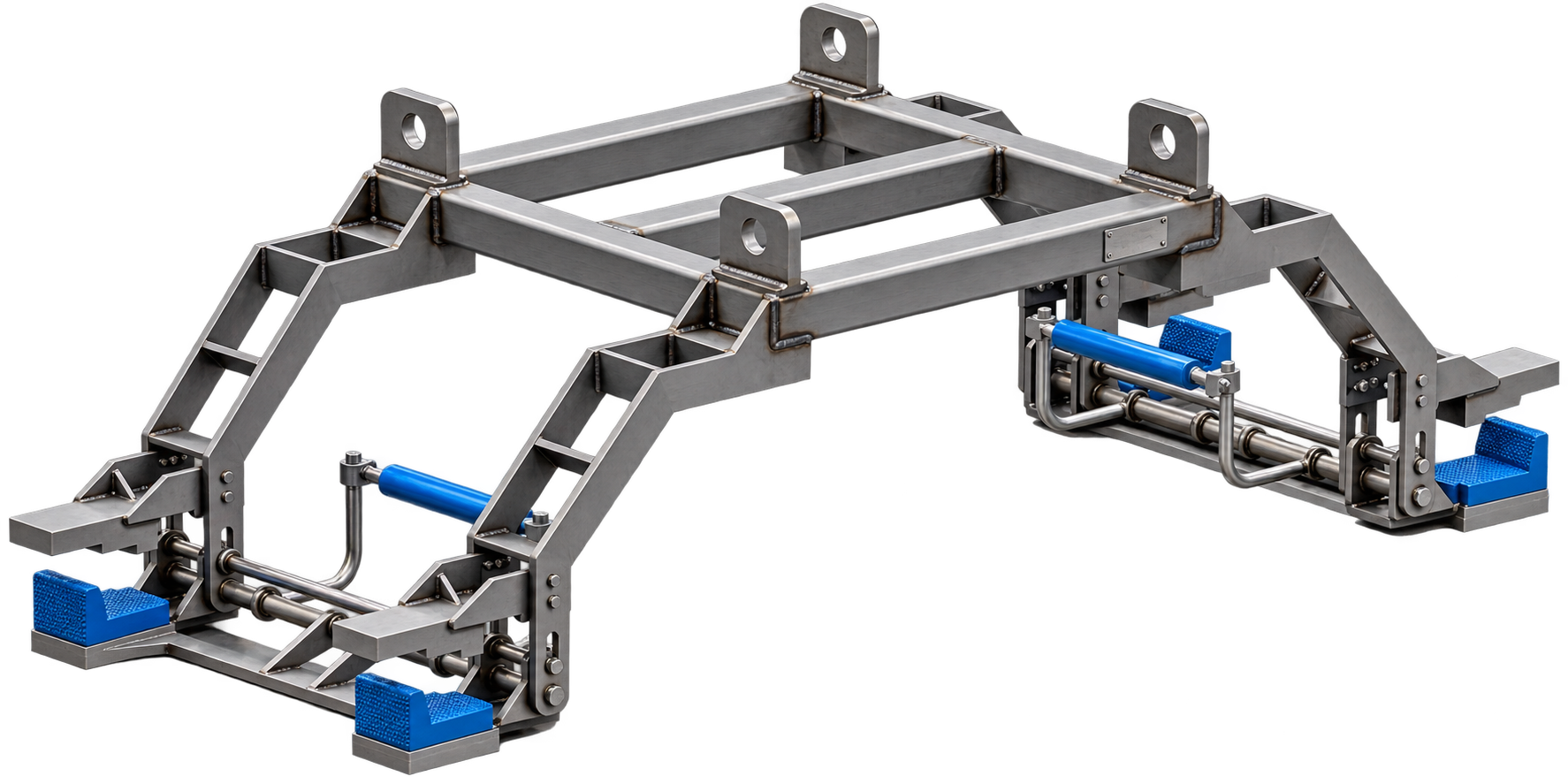

AC Custom Lifting Fixture
Custom lifting fixture designed for secure lifting, holding and positioning of industrial workpieces. The fixture can be integrated with pneumatic or hydraulic clamping systems and customized according to workpiece geometry, lifting points and production requirements.
PROJECT DETAILS
The AC Custom Lifting Fixture is designed for lifting, holding and positioning industrial workpieces safely and efficiently during production, assembly, loading and material handling processes.
The fixture uses a heavy-duty fabricated steel structure with dedicated locating and support points to match the geometry of the workpiece. Mechanical, pneumatic or hydraulic clamping systems can be integrated to help secure the workpiece during lifting and movement.
Multiple lifting points are provided on the upper frame for connection with cranes, hoists or other factory lifting equipment.
Each lifting fixture can be custom engineered according to the customer’s workpiece dimensions, weight, center of gravity, lifting points, required movement and production process.
Key Features:
• Custom Lifting Fixture Design
• Heavy-Duty Fabricated Steel Structure
• Dedicated Workpiece Support Points
• Pneumatic / Hydraulic Clamping Integration Available
• Multiple Lifting Point Configuration
• Workpiece Positioning and Holding
• Protective Contact Pads Available
• Custom Frame Dimensions
• Mechanical Safety Lock Available
• Crane and Hoist Integration
• Easy Workpiece Loading and Unloading
• Designed According to Customer Requirements
Applications:
• Automotive Component Handling
• Heavy Workpiece Lifting
• Machine Loading / Unloading
• Assembly Process
• Production Line Material Handling
• Workpiece Positioning
• Jig & Fixture Handling
• Factory Logistics
• Maintenance Operations
• Custom Industrial Applications
AC Design and Development provides complete lifting fixture engineering services including concept design, 3D mechanical design, fabrication, machining, welding, assembly, installation and testing.
Each lifting fixture can be developed according to actual workpiece geometry, handling method, lifting points, production layout and customer requirements.
The fixture uses a heavy-duty fabricated steel structure with dedicated locating and support points to match the geometry of the workpiece. Mechanical, pneumatic or hydraulic clamping systems can be integrated to help secure the workpiece during lifting and movement.
Multiple lifting points are provided on the upper frame for connection with cranes, hoists or other factory lifting equipment.
Each lifting fixture can be custom engineered according to the customer’s workpiece dimensions, weight, center of gravity, lifting points, required movement and production process.
