Checking Fixture (CF)

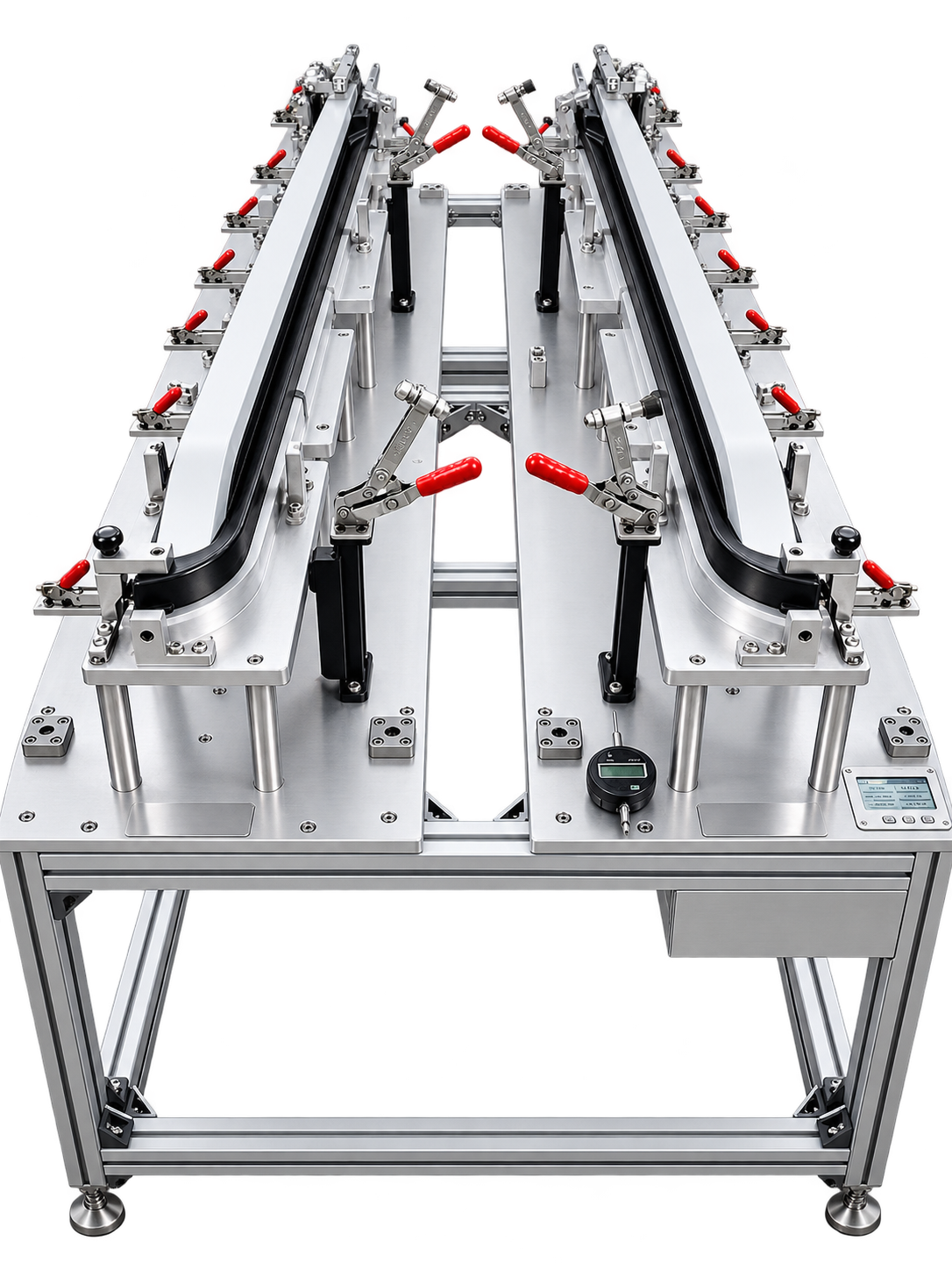

Custom Checking Fixture (CF) designed for dimensional inspection, positioning and quality verification of production parts. Engineered for high accuracy, repeatability and efficient inspection in industrial manufacturing.
The AC Custom Checking Fixture (CF) is designed for accurate dimensional inspection and quality verification of manufactured components.
The fixture provides precise locating, supporting and clamping points to ensure that each workpiece is positioned consistently during inspection. It can be used to verify dimensions, profiles, hole positions, gaps, flushness and other critical characteristics according to customer drawings and quality requirements.
Each Checking Fixture can be custom designed according to the actual workpiece, inspection standard and production process.
Key Features:
• High Precision Checking Fixture
• Accurate Workpiece Positioning
• Custom Locating and Clamping System
• Toggle Clamp System
• Dimensional Inspection Support
• Gap & Flush Inspection Capability
• Go / No-Go Checking Available
• Dial Gauge Integration Available
• High Repeatability
• Durable Industrial Construction
• Easy Loading and Unloading
• Custom Design According to Customer Drawing
Applications:
• Automotive Parts Inspection
• Plastic Parts Inspection
• Metal Components
• Trim Parts
• Assembly Parts
• Dimensional Quality Control
• Production Line Inspection
• Final Inspection
AC Design and Development provides complete Checking Fixture services including concept design, 3D design, precision machining, fabrication, assembly, measurement, testing and installation.
