CONVEYOR SYSTEM

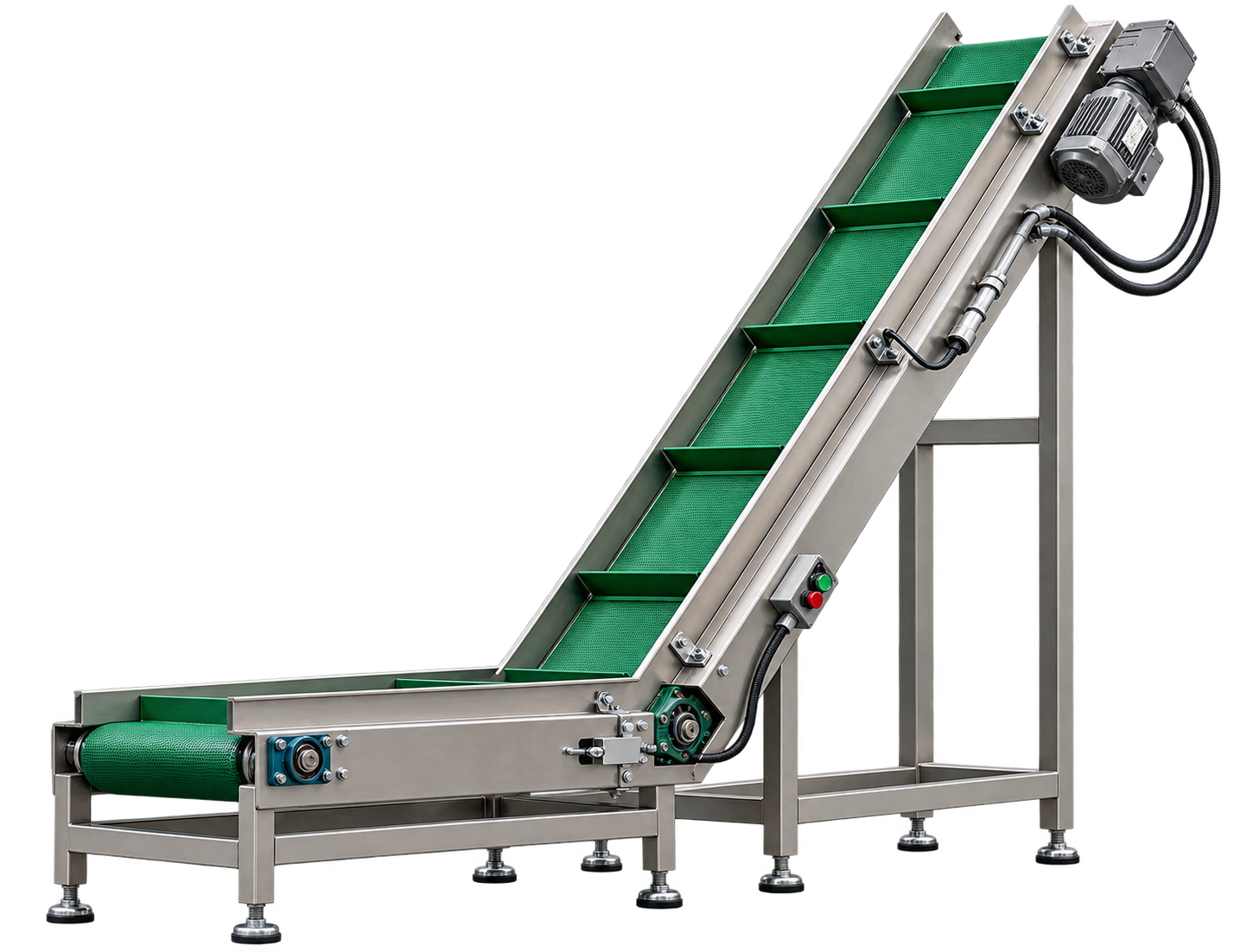

Custom L-Type Inclined Cleated Belt Conveyor
Custom L-type inclined cleated belt conveyor designed for elevating and transferring parts, components and materials between different production levels. The horizontal infeed section and cleated belt provide smooth feeding and help prevent product rollback during inclined conveying.
The AC Custom L-Type Inclined Cleated Belt Conveyor is designed for efficient material transfer from a lower loading level to an elevated discharge point.
The system combines a horizontal infeed section with an inclined conveyor section, allowing products and workpieces to enter the conveyor smoothly before being transported upward.
The cleated belt helps maintain product position and prevents materials from sliding backward during elevation, making the system suitable for continuous production and automated material handling applications.
Each conveyor can be custom designed according to the customer’s product dimensions, weight, transfer height, incline angle, belt speed and factory layout.
Key Features:
• L-Type Inclined Conveyor Design
• Horizontal Infeed Section
• Cleated Belt for Product Retention
• Motor-Driven Conveyor System
• Stainless Steel / Industrial Structure
• Custom Belt Width and Length
• Custom Transfer Height
• Adjustable Conveyor Speed Available
• Side Guide Installation Available
• Sensor Integration Available
• PLC and Automation Integration Available
• Emergency Stop and Safety Controls Available
• Adjustable Leveling Feet
• Custom Design According to Customer Requirements
Applications:
• Parts Elevation
• Machine Feeding
• Production Line Transfer
• Material Handling
• Packaging Lines
• Assembly Lines
• Component Transfer
• Factory Automation
• Loading and Unloading Systems
• Transfer Between Different Height Levels
AC Design and Development provides complete conveyor engineering services including concept design, mechanical design, fabrication, electrical control, PLC programming, assembly, installation, testing and commissioning.
Each system can be customized according to actual product dimensions, load requirements, conveyor speed, transfer height, factory layout and production process.
