MATERIAL HANDLING EQUIPMENT

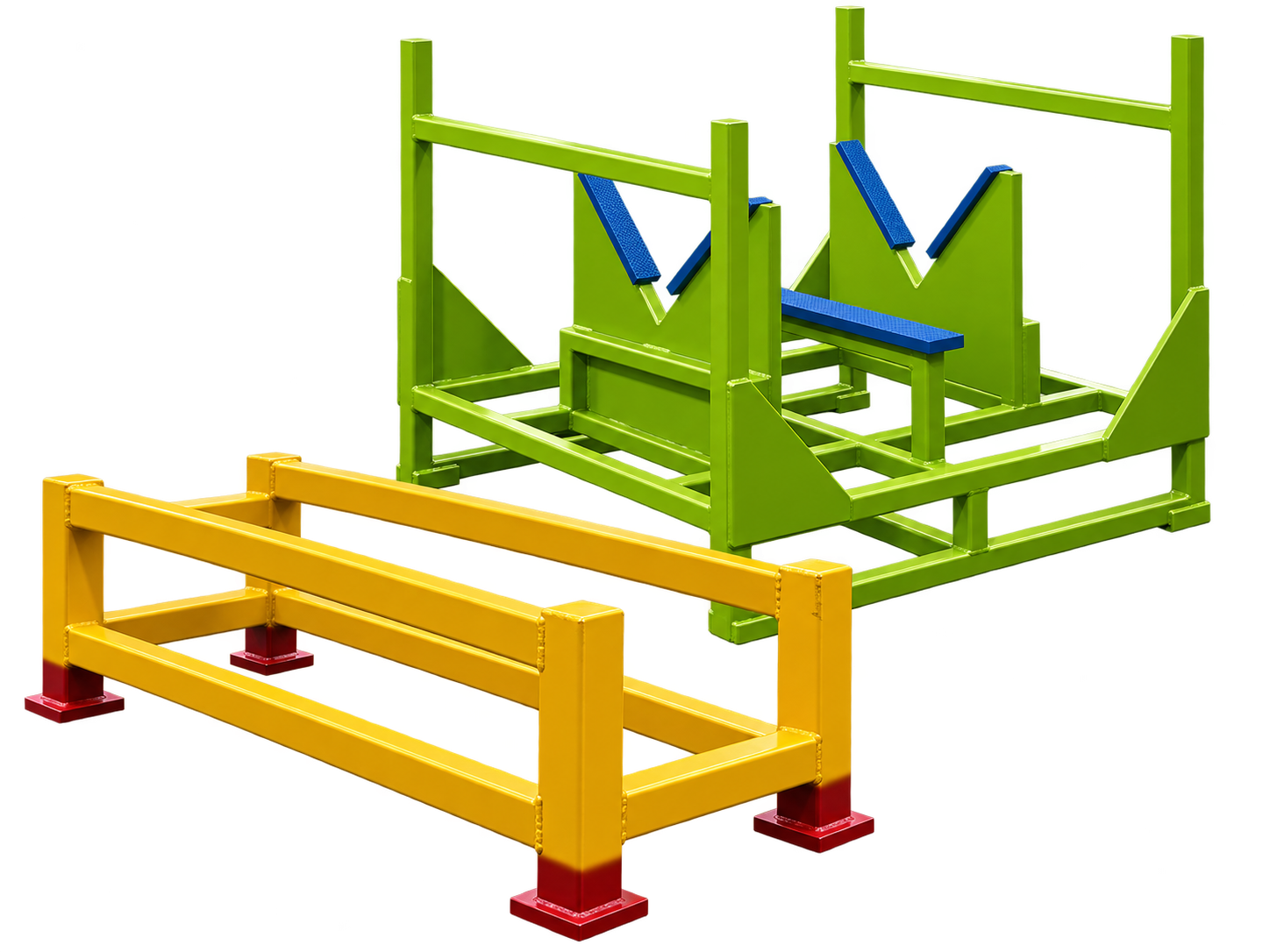

Heavy-Duty Steel Support Rack & Pallet
Custom heavy-duty steel support rack and pallet designed for secure storage, positioning and transportation of industrial workpieces. The support structure can be customized according to part geometry, loading method and factory handling requirements.
PROJECT DETAILS
AC Custom Heavy-Duty Steel Support Rack & Pallet is designed for industrial applications requiring stable workpiece support, organized storage and safe material handling.
The structure is fabricated from heavy-duty steel and can be customized with dedicated supports, V-shaped cradles, protective pads, locating points and reinforced frames to match the shape and size of each workpiece.
The system can be used as a fixed support rack, storage pallet or dedicated handling frame according to the customer’s production and logistics requirements.
Key Features:
• Custom Heavy-Duty Steel Structure
• Dedicated Workpiece Support Design
• V-Shaped Cradle Support Available
• Protective Pad / Anti-Scratch Contact Surface
• Reinforced Welded Frame
• Custom Dimensions Available
• Custom Loading Height
• Forklift Handling Configuration Available
• Stackable Design Available
• Fixed or Mobile Configuration Available
• Surface Coating and Industrial Painting Options
• Custom Locator and Stopper Integration
• Designed According to Customer Workpiece
Applications:
• Heavy Workpiece Storage
• Shaft and Cylindrical Part Support
• Automotive Components
• Machine Parts Storage
• Production Line Material Handling
• Work-In-Process (WIP) Storage
• Factory Logistics
• Warehouse Handling
• Finished Part Storage
• Custom Industrial Applications
AC Design and Development provides complete custom rack and pallet engineering services including concept design, 3D mechanical design, structural fabrication, welding, machining, painting, assembly and installation.
Each rack or pallet can be developed according to actual workpiece dimensions, weight, support points, handling method, quantity per rack and factory layout.
The structure is fabricated from heavy-duty steel and can be customized with dedicated supports, V-shaped cradles, protective pads, locating points and reinforced frames to match the shape and size of each workpiece.
The system can be used as a fixed support rack, storage pallet or dedicated handling frame according to the customer’s production and logistics requirements.
