DIE & MOLD

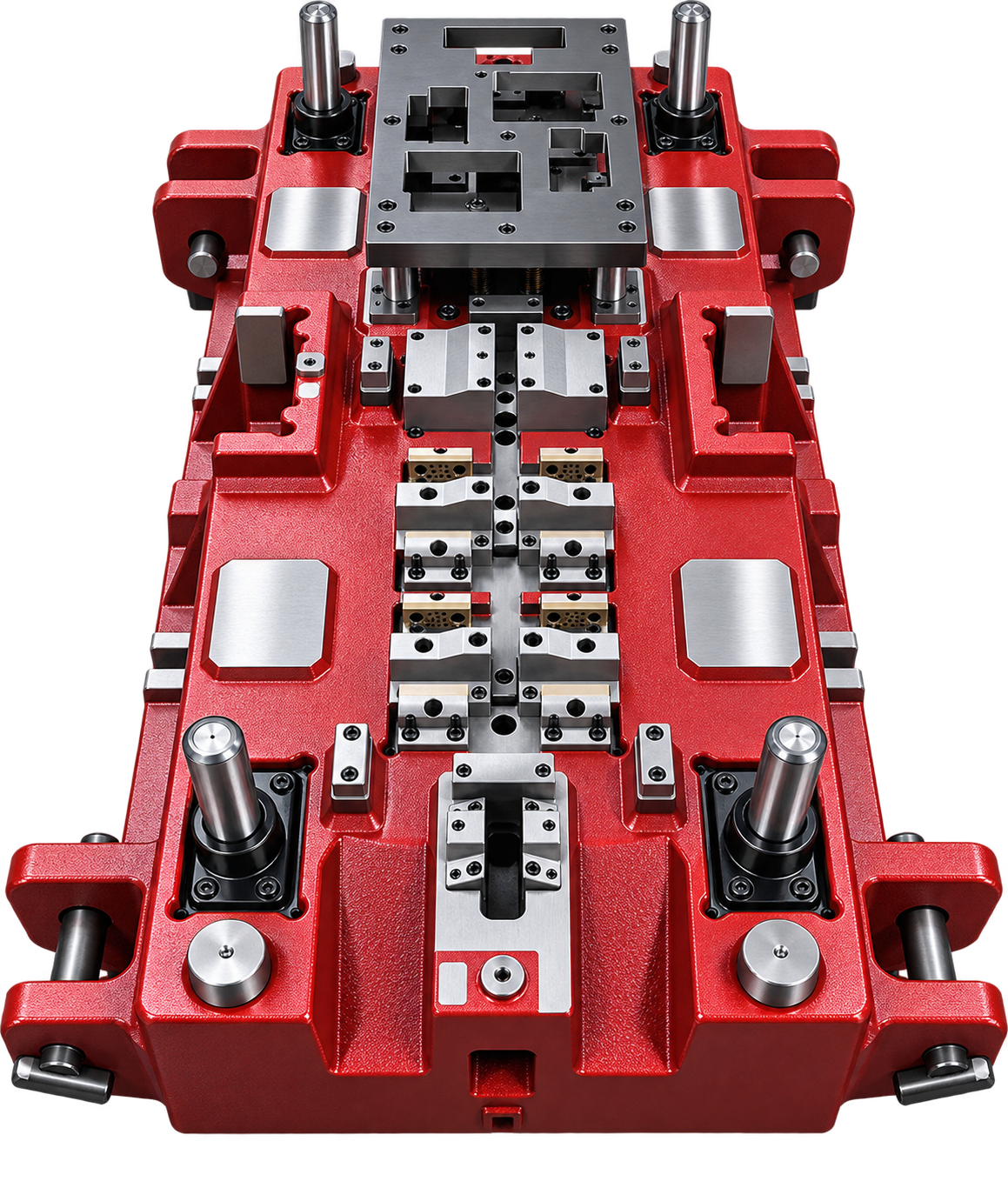

Precision Stamping Die
Custom precision stamping die designed for high-accuracy metal forming, punching and production processes. Engineered for repeatable operation, long service life and consistent part quality in industrial manufacturing.
PROJECT DETAILS
The AC Custom Precision Stamping Die is designed for industrial metal forming and punching applications that require high dimensional accuracy, repeatability and reliable production performance.
The die set integrates precision guide posts, punch and die components, inserts, wear plates and locating elements to ensure accurate alignment and stable operation during the stamping process.
Each stamping die can be custom designed according to the customer’s part drawing, material thickness, production volume, press specification and required manufacturing process.
Key Features:
• Custom Precision Stamping Die
• Punching and Forming Process
• Precision Guide Post and Guide Bush System
• High Accuracy Die Alignment
• Replaceable Inserts and Wear Components Available
• Multi-Station Design Available
• Progressive Die Configuration Available
• High Repeatability
• Durable Tooling Structure
• Easy Maintenance and Component Replacement
• Custom Material and Heat Treatment Selection
• Designed According to Customer Drawing
Applications:
• Automotive Components
• Metal Brackets
• Electrical Components
• Sheet Metal Parts
• Industrial Hardware
• Precision Metal Parts
• Mass Production
• Progressive Stamping
• Punching and Forming
• General Manufacturing
AC Design and Development provides complete die engineering services including concept design, die design, machining, wire cut EDM, grinding, heat treatment coordination, assembly, die spotting, trial production and improvement.
Each die can be developed according to actual product geometry, material properties, tolerance requirements, press machine specifications and target production volume.
